    0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24

    Ask Lasest Price
    Brand Name : BSC
    Model Number : DRV24
    Certification : CE
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 1000 sets per month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24

    DRV24 Double Stage Oil-lubricated Rotary Vane Vacuum Pump with 6L/s


    The rotary vane technology enables a technically simple structure of the vacuum pumps. The consistently high vacuum level in continuous operation is guaranteed through circulating oil lubrication, perfectly coordinated materials and state-of-the-art and precise manufacturing. The standard oil separator ensures clean and oil-free exhaust thanks to its sophisticated extractor system with integrated oil return. When fitted with an optional gas ballast valve, even large amounts of vapour can be processed. A non-return valve in the inlet flange prevents air from flowing back into the vacuum chamber when the vacuum pump is switched off.


    ​Technical Data

    UnitsDRV24
    Pumping Rate50 Hzm³h-1 / Lmin-124/336
    60 Hz28/403
    Ultimate VacuumWithout gas ballastPa/ mbar0.5/5×10-3
    With gas ballast4/4×10-2
    InletKF25
    OutletKF25
    Oil Needsliter1.7
    Noise LeveldB63

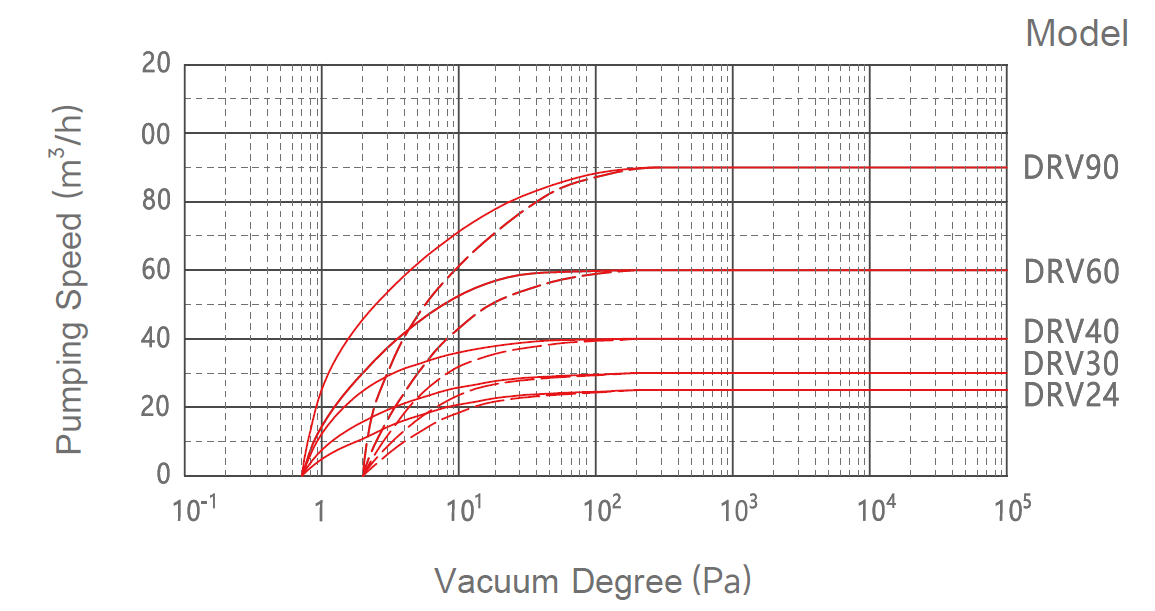

    Performance Curve


    Dimensions


    DRV24



    Application


    Vacuum metallurgy

    Thin-film coating

    Freeze drying

    Lab

    ... ...
