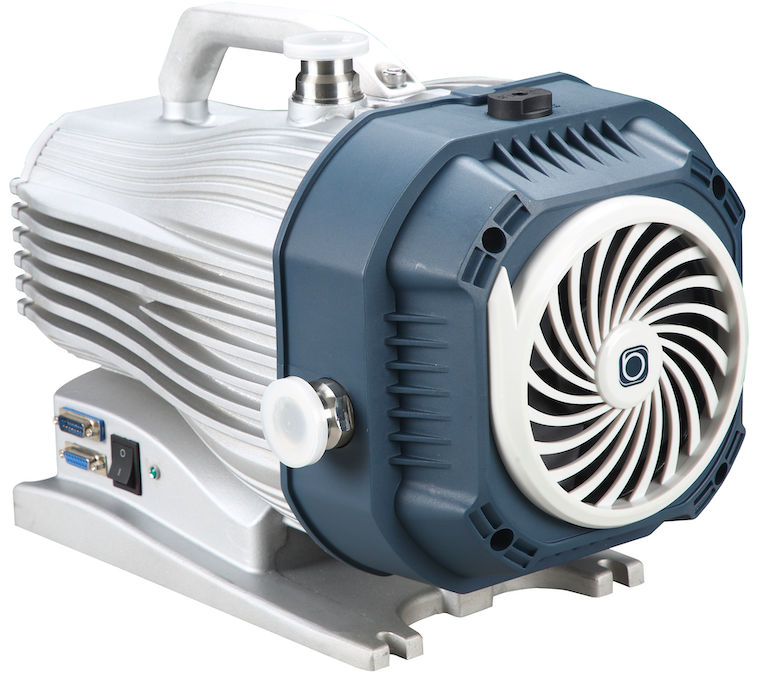

36 m³/h Dry Scroll Vacuum Pump IDSP36 , Sky Blue Air cooled Oil-Free
Description
Scroll pump is a new kind of oil-free mechanical pump with features of compact construction, hermetically sealing, high vacuum, etc. Improved performance, exceptional pumping capability, quiet operation make IDSP the ultimate dry choice. As a high technology product, it has a highly technical requirement in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean process and has popular use in the market. In order to meet the featured application requirement of domestic and overseas customers, Baosi Vacuum developed the IDSP series dry scroll pump with excellent performance and high-cost efficiency.
Technical Data
| Model | IDSP10 | |
| Nominal rotational speed | rpm | 1800 |
| Displacement | m³h-1 | 36 |
| Motor power | W | 1100 |
| Ultimate Vacuum | mbar | 0.01 |
| Voltage input | V | 1-ph, 100-240 |
| Noise level | dB (A) | 56 |
| Inlet flange | - | KF40 |
| Exhaust flange | - | KF25 |
| Max water vapour pumping rate | gh-1 | 200 |
| Leak tightness | mbar ls-1 | ＜1×10-6 |
| Weight | kg | 56 |
| Cooling Method | - | Air cooled |
Performance Curve
Dimensions
Application
|
|
